DAMO BRACE

Pallet racking bracing repair kit: DAMO BRACE

Save 85%: Replace Damaged Pallet Rack Braces Instead of Entire Uprights

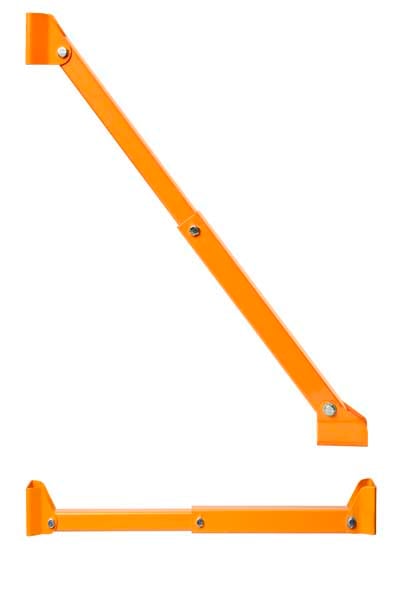

The DAMO BRACE is an adjustable pallet rack bracing designed for the replacement of damaged or missing horizontal and diagonal braces while maintaining the original configuration and load capacity of a pallet rack upright. Our adjustable brace is unique as its length can be adjusted from 24" to 94". Two end brackets with backplates secure the brace to your existing rack frame and allow installation at almost any angle.

Our DAMO BRACE circumvents the need for replacing an entire pallet rack upright, saving you time as you won't need to unload and dismantle your rack to address the issue. Our DAMO BRACE kit is your most cost-effective and flexible solution if you've identified damaged or missing pallet rack struts in your warehouse.

Get a Quote
Pallet racking bracing repair kit: DAMO BRACE

DAMO BRACE - Adjustable Brace Length

0

"

Minimum Length

0

"

Maximum Length

DAMO BRACE - Adjustable Brace Length

24

"

Minimum Length

94

"

Maximum Length

DAMO BRACE

Easy to Install

Damo Brace Slider easy to install

DAMO BRACE

Adjustable Length & Angle

Damo Brace: repairs horizontal or diagonal braces

DAMO BRACE

Great Investment

Damo Brace Ajustable angle detail

DAMO BRACE

Short Lead-Time

Damo Brace Slider lead time-1

DAMO BRACE

Get Ahead of Damage

Damo Brace adjustable repair kit

Quick and Easy Rack Brace Replacement

The DAMO BRACE repair kit includes all necessary hardware (brackets, backplates, and bolts) and can easily be installed when strut damage occurs. The damaged brace is removed and replaced with our adjustable brace kit, which can be fitted to any rack style. Our high-quality steel brace design offers powerful resistance to all future impacts. Also, none of the DAMO BRACE parts are welded, so the degradation of welds between the brace and column is eliminated due to vibration or impact.

DAMO BRACE Benefits

Heavy-Duty

Our adjustable replacement brace uses high-quality structural steel with a heavy gauge to offer true future impact resistance.

Custom Finish

Damotech offers the choice of any paint color for your adjustable brace, we can also galvanize our brace kits when destined for freezer or fresh food environments.

Powder-Coated Paint

This painting process is performed at our state-of-the-art facility and offers unsurpassed durability.

Bolt-On Kits with brackets

Our adjustable pallet rack braces are shipped ready to be installed with all the necessary hardware, including high-quality bolts, adjustable brackets, and backplates. No welding is required.

Easy Self-Install

The DAMO BRACE can be installed by your maintenance crew in under 30 minutes. Alternatively, they can also be installed by our Damotech-certified installers.

Fits any OEM Pallet Rack Type

Damotech's adjustable pallet rack brace will repair and protect any rack from any manufacturer (OEM), even those that are no longer being produced.

DAMOTECH BENEFITS

At Damotech, we stand behind all our warehouse safety products. The DAMO BRACE comes with a 10-year manufacturer's warranty. This means that the product you purchase will be free from defects in material and workmanship.

Download Warranty Sheet

When faced with damaged racking components, one can choose to repair them with dedicated repair units or replace them with original OEM parts. Rack repair products offer several advantages:

Permanent

Our repair products are durable, robust, and come with a warranty that provides full peace of mind. Replacing with OEM parts means your uprights remain vulnerable to impact and may get damaged again and again.

Quick Delivery

Lead-time for Damotech's adjustable brace is short and are in stock most of the time. Brace repair kits are usually ready to ship in less than a week.

Less Disruptive

The installation process is quick and easy. It's more cost-effective and has less impact on your day-to-day operations as no unloading or dismantling is required in most cases.

All these reasons make our DAMO BRACE rack repair product a smarter solution and a better long-term investment than component replacement.

Visit the Why Damotech page to learn why top warehouse operators trust Damotech as their partner for rack safety.

Our pallet upright brace repair kits can be installed by our certified installers or by your maintenance crew in 30 minutes or less.

We aim to have your adjustable brace ready to ship in less than a week.

1 2 3 4
1 Strong Bolts
This brace comes with 3 - 3/8"bolts - Grade 5.
2 Painted or Galvanized Steel Tubes
Two steel tubes interconnect inside one another for length adjustability.
3 Adjustable brace length
Our adjustable brace can be made to an infinite number of lengths between 24 to 94 inches as it is determined during the installation process.
4 Adjustable brackets
The bracing angle is adjustable as the end-brackets act as pivots. The brace can be installed in both horizontal and diagonal configurations at almost any angle.
Damotech Success Testimonial Quotes & Reviews

Safely managing storage rack systems across a network of warehouses can become overwhelming. With Damotech we have found an industry partner for education, engineering support, repairs and protection. Their quality and customer service is first class.

Pehr Peterson

Director of Construction and Asset Management
Reyes Holdings, LCC

The Damotech Platform is critical in maintaining control over warehouse safety. It's useful as it provides online access to all the inspection reports. Plus, our managers have great confidence in Damotech's repair kits.

Réjean Ardouin

Maintenance Supervisor
Keurig

I want to share my satisfaction with your professional service and products. Your pallet rack repair system is so incredible that it made our warehouse safer without affecting our daily operations.

Jocelyn Proulx

Warehouse Director
IPEX

We've been using Damotech for 10 years and are satisfied with their quick service. They know rack safety and are attentive to our needs. We always get clear answers in a short time if not on the spot. Plus, their products are of impeccable quality and reliability.

Gilbert Marois

Team Lead, Maintenance
Prinoth Ltée

The safety of our employees is paramount, and Damotech has manufactured custom-made protective fences for our pedestrian walkways that are forklift-proof! We are more than satisfied and will change all the old ones for these because they are superior.

Stéphane Ouellet

Warehouse Supervisor
Yoplait (General Mills)

Damotech performed a full conformity inspection to help us comply with local standards. Their expertise has made our racks safer as they have guided us in establishing a rack review and awareness protocol for our workers' safety.

Mathieu Caron

Director of Production
Sixpro

Over the years, we had accumulated several brands of racks in our warehouse. There was confusion surrounding their capacity and costly proposals to ensure their compliance. Damotech proved to be a partner of choice to regulate all of our installations.

Philip O'Shaughnessy, P. Eng., MBA

Plant Manager
Kerry

For 15 years, we have relied on Damotech for the safety of our pallet racks. Damotech is the reference in the industry! We trust them 100% when it comes to the safety of our warehouse.

Martin Grou

Transportation Supervisor
Wolseley

We have established a relationship of trust with Damotech because of the speed and quality of their service. Their involvement was remarkable when we needed it most. We are now equipped to manage and maintain our pallet racks securely thanks to their web platform.

Kevin Pelletier

Maintenance Manager
Vulcain

FAQ

How long will it take to manufacture the adjustable brace?
FAQ arrow

Lead time is generally under one week, but it may vary based on demand. Damotech usually has brace replacement kits in stock. Remember, the DAMO BRACE is very flexible as you can install them horizontally or diagonally, so you could order them in advance to store at your facility and use them as needed.

I have several types of pallet rack uprights in my warehouse. Can your DAMO BRACE repair all of them?
FAQ arrow

Damotech has developed the expertise to repair any rack, even racks no longer manufactured. We have yet to meet a type of rack that we can't repair, but we are always ready for the challenge!

Contact us and provide all the necessary information, such as pictures and manufacturer, so that we can help with your company's specific issues.

Why is pricing not listed on your website?
FAQ arrow

It’s not that we want to skirt around the subject of pricing. We like to know what things cost, too.

Most of our rack protection and rack repair products are made-to-measure, and tailored to customers’ specific needs. We inspect facilities large and small, and repair damage anywhere in North America. Consequently, our pricing will factor in geographic location, volume, freight, and installation costs. A rack expert will most likely visit your warehouse to assess the damage and take the necessary measurements for a perfect product fit and a detailed quote containing no surprises.

To get more information on pricing, request a free quote or call 1-877-990-3266 and let us demonstrate the value of the products and services we provide.

Has an engineer tested your adjustable brace?
FAQ arrow

Yes. All our products are tested and approved by professional engineers and are put through rigorous testing before they become part of our product line.

I have multiple facilities across the country. Could you service them all?
FAQ arrow

Of course. Damotech has a network of specialized dealers that can service your warehouses anywhere in North America, regardless of geographic location. This means all of your facilities can be serviced consistently. And the advantage of using bolt-on solutions is the consistency achieved by systematically using these products.

How do I find a Damotech Dealer?
FAQ arrow
Our dealer network is extensive. Simply visit our Find a Dealer page so we can put you in touch with a local dealer.
How can I tell if my rack (or brace) is damaged?
FAQ arrow
We've prepared a Damage Assessment Guide on the subject, and also offer safety training for those who work with pallet racking systems and wish to know more about their safety. If you have a doubt about particular damage, we suggest you contact us so we can take a look and suggest the best solution to fix it.

Rack Brace Replacement & Repair Solution Video



HubSpot Video

Unlock the Power of the DAMO BRACE:
Save Time and Money with our Pallet Rack Upright Repair Solution

The DAMO BRACE offers a range of significant benefits for addressing damaged pallet rack upright struts. With this innovative solution, you can avoid the hassle and expense of replacing an entire upright, saving you time and money. The DAMO BRACE prevents the need to unload and dismantle the rack, allowing you to swiftly address the issue without disrupting your operations. The DAMO BRACE ensures minimal downtime and maximum efficiency. Its robust construction and high-quality materials ensure long-lasting durability and reliable performance. Extend the lifespan of your pallet rack system, enhance safety, and optimize your warehouse productivity. Explore the DAMO BRACE today!
