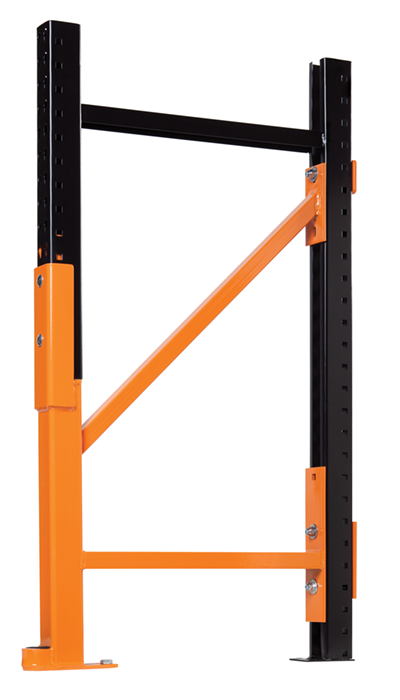

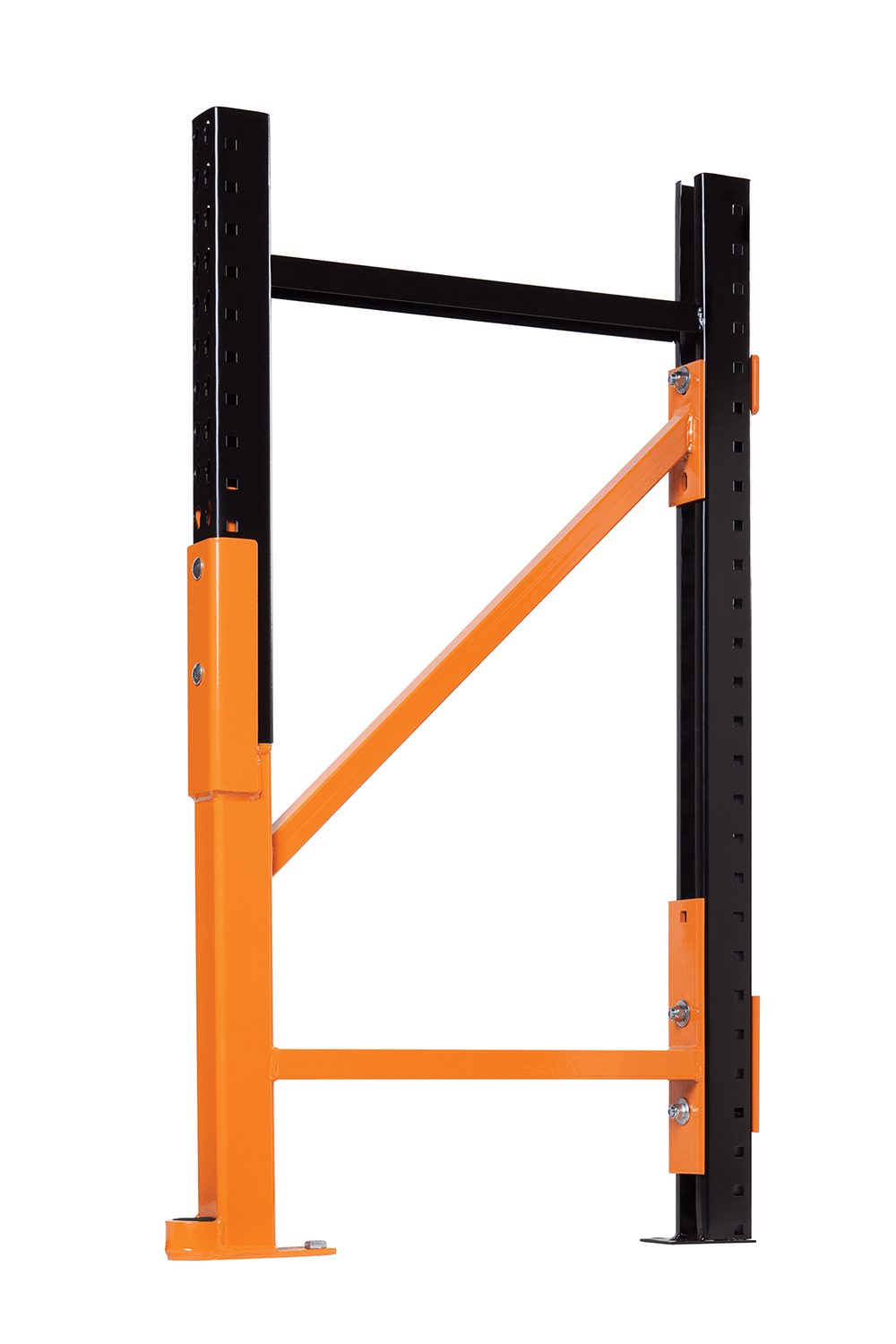

Pallet Rack Repair kit Damo Pro

Engineered Rack Column Repair Kit with a Lifetime Warranty

It's the rack repair kit that started it all. This permanent repair solution is designed to fix damaged rack columns and uprights on any storage rack system. It does not decrease or affect the original load capacity of the pallet rack.

For those in the material handling industry who operate a warehouse or distribution center, and are familiar with the challenges of maintaining rack safety or dealing with damaged pallet racks due to forklift impact, this solution is for you!

Get a Quote
Pallet Rack Repair kit Damo Pro

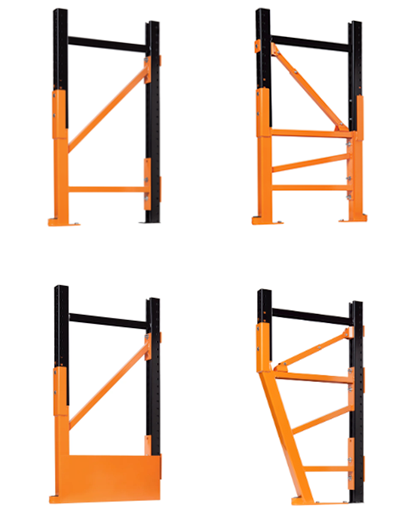

Damo-Pro-Montage-1

Made-to-Measure Rack Column Repair Kit

This made-to-measure product is designed to withstand shocks and impacts from forklifts, their blades, outriggers, and the pallets they carry. It’s so indestructible that it comes with a lifetime warranty against impact. That’s right. Built with 1/4 in thick steel, the DAMO PRO offers that extra protection, so you don’t have to worry about forklift damage occurring again.

Talk to an Expert

U3M Video Background

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras tincidunt sit amet enim sit amet egestas. Duis sapien nisi, sagittis vitae vehicula ac, malesuada eget lectus. Praesent sit amet pulvinar nunc. Aenean tempus posuere condimentum. Donec vitae ultricies nulla. Nam pretium sem ultrices, placerat nisi quis, tempus libero. Suspendisse condimentum eu diam sed tempus. In vitae risus ut libero hendrerit maximus. Vestibulum non porta ipsum. In vitae lacinia orci. Nulla placerat elit a congue imperdiet. In sagittis nisi nec cursus sodales.

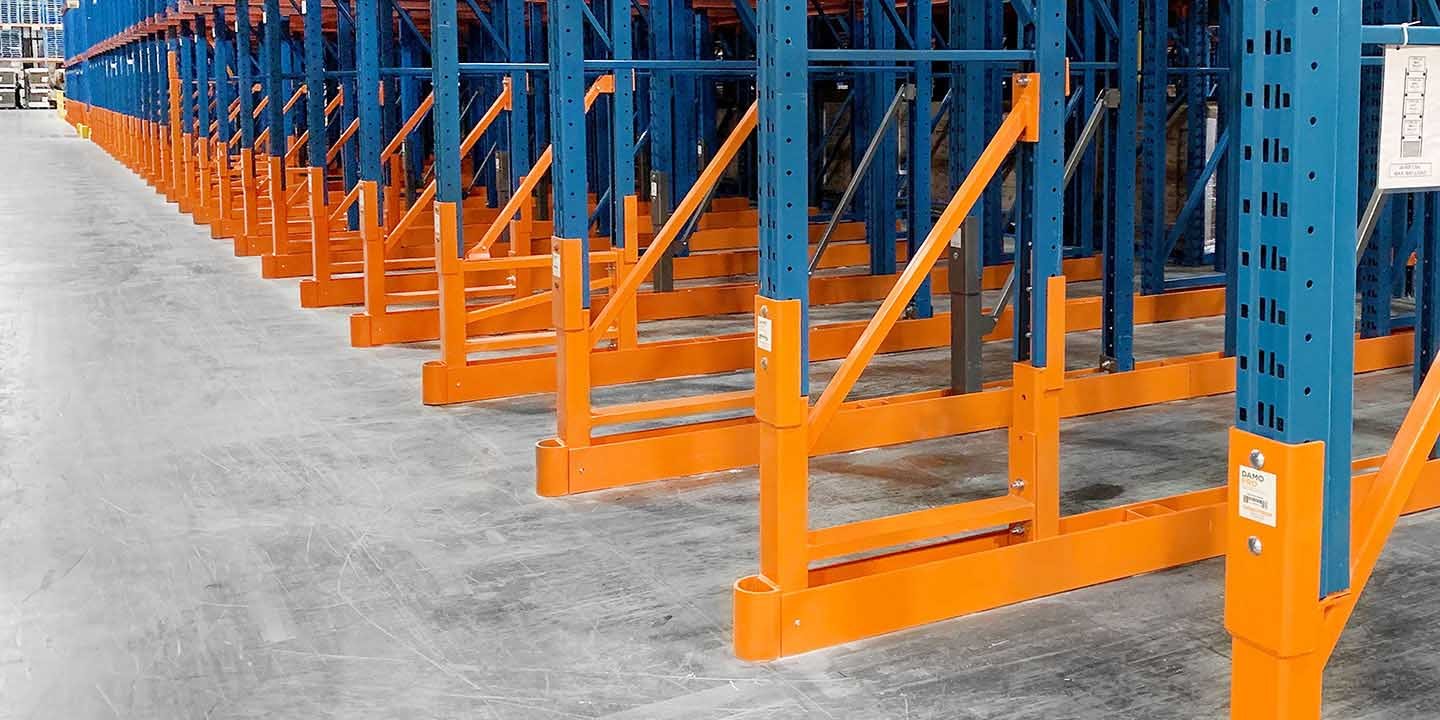

Pallet rack repair kit Damo Pro installed

Best-in-Class Repair Kit

The DAMO PRO was designed and patented as a repair kit for the front and/or back legs of a frame in a pallet rack system. When damage occurs, we measure the height of the damage, cut above it, and install the custom-made repair kit as a bolted-on replacement solution, which permits a quick and safe installation. No unloading of pallets is required in most situations. And no on-site welding or hot permit is required, as the unit arrives ready to be installed, with all the necessary hardware.

FREE DAMAGE ASSESSMENT

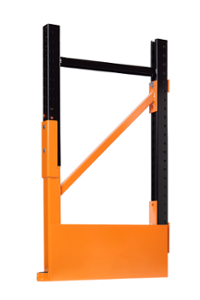

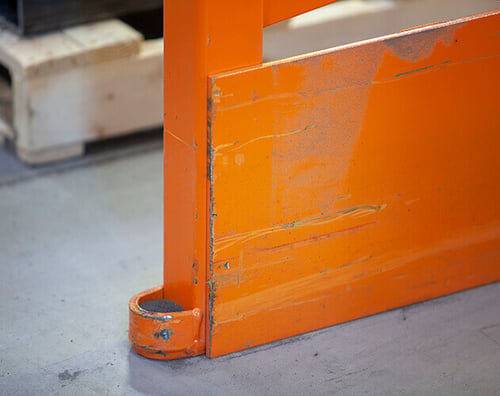

Pallet rack repair kit Damo Pro Deflex Plate

DEFINITIVE RACK REPAIR SOLUTION

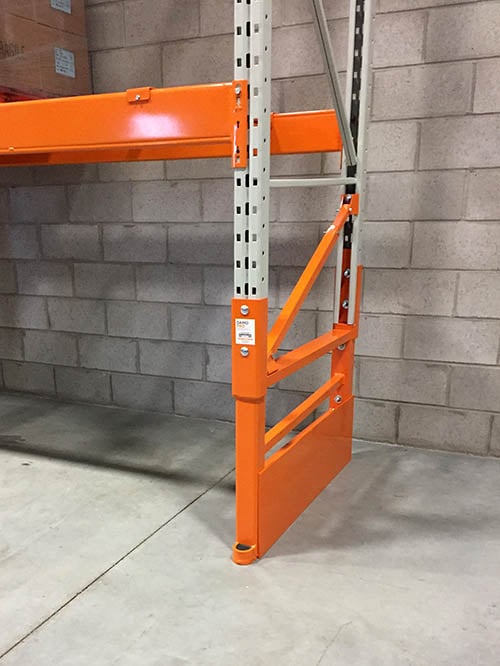

Hilti screw-type anchors are always included in our rack repair kits. Additional DAMO BRACES may also be included with the repair kit to replicate the original configuration and brace pattern of the pallet racking systems. A deflection plate can be added at the base of the frame when front and back units are installed at the same time; this further protects the upright frame at floor level.

Benefits

Lifetime Warranty

The DAMO PRO comes with the best warranty in the business. This means that once installed, if your unit were to get significantly damaged, we would simply replace it, no questions asked.

Repairs & Protects

The DAMO PRO repairs your existing rack so you can prolong its lifespan. But it also protects against future impact so you will never have to replace that same rack location ever again.

Cost Effective Solution

Replacing your damaged racks with OEM parts is costly and time consuming. Learn why our rack repair kit is a better option than replacement with our infographic.

Made-to-Order

All of our products are custom built to your exact measurements, to ensure a perfect fit that will be permanent and provide peace of mind. It matches the original rack configuration and can be installed on racks from any manufacturer.

Easy Installation

Our proprietary lifting device lets us repair a rack quickly and safely, with minimal to no unloading of the stored merchandise. Our certified crews typically install our kits in less than an hour with little disruption to your operations. Learn how it works.

Solidly Anchored

All of our products come with screw type Hilti Anchors. Time-saving and easy to install, they are a fully removable and reusable anchoring solution. Seismic anchors are provided in seismic zones or when required.

Bolt-On Kits

All of our units are shipped ready to be installed with all the necessary hardware. No welding is done on site.

Less Waste

The rack repair process is less wasteful then rack replacement, as only the damaged part of the rack is removed, reducing the amount of steel that must be discarded.

Heavy Duty

We use high-quality structural steel with a heavy gage to offer true impact resistance.

When faced with damaged racking components, one can choose to repair them with dedicated repair units or replace them with original OEM parts. Rack repair products offer several advantages that need to be considered:

Permanent

Our repair products are permanent, robust, and come with a warranty that provides full peace of mind. Replacing with OEM parts means your uprights remain vulnerable to impact and may get damaged again and again.

Quick Delivery

Lead time for Damotech products is short. Units are ready to ship in four weeks. That's much faster than ordering OEM parts which can take weeks to arrive.

Less Disruptive

The installation process is quick and easy, and unloading is usually not necessary, thanks to the Easy Lift. No need to dismantle and reattach beams, which means less downtime. It's more cost effective and has less impact on your day to day operations.

All these reasons make our repair products a smarter solution and a better long-term investment.
Visit the Why Damotech page to learn why top warehouse operators trust Damotech as their partner for rack safety.

Our rack repair solutions are designed to respect the specifications of your original racking system. They restore the original load capacity while extending their lifespan — safely and permanently.

Our experts will visit your warehouse, take all the necessary measurements and specify the right product for each reported deficiency.

Our units are made-to-measure for your specific needs. No matter the dimensions, finish (paint color, galvanization), type of foot plate (seismic), or rack configuration, we'll custom build the units to your exact requirements.

Because we strive to offer consistent installations regardless of location, all our installers are trained and certified by our most experienced engineers. A standard repair kit can be installed by our certified installers in under an hour.

During installation, the damaged upright frame is secured, slightly lifted and supported by our proprietary lifting device. The rack damage is removed, and the rack repair solution is bolted to the rack.

Once installed, the pallet rack repair kit protects the storage system from reoccurring damage, prevents costly downtime, labor expenses, and safety hazards due to repeated damage to warehouse racks. This proven solution has been installed in warehouses all over North America for over 20 years.

To learn more about the rack repair process, visit our How it Works page.

We aim to have your made-to-measure repair units ready to ship in about four weeks.

At Damotech, we stand behind our products. The DAMO PRO comes with a LIFETIME WARRANTY against impact. This means that once installed, if your unit were to get significantly damaged, we would simply replace it, no questions asked.


DOWNLOAD WARRANTY SHEET

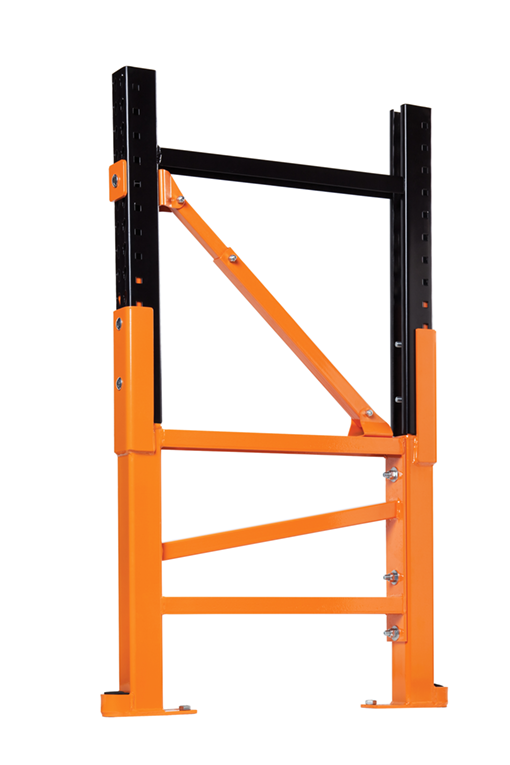

1 2 3 4 5 6 7 8

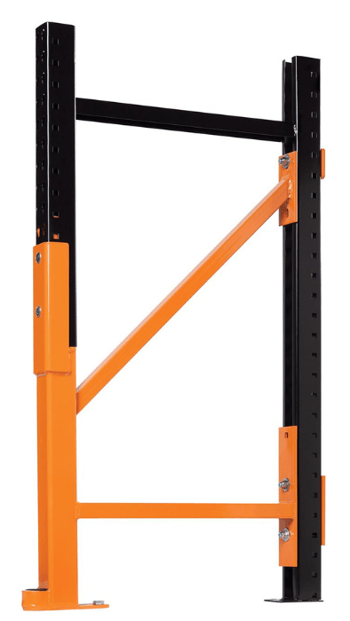

1 Diagonal Brace
It follows the original configuration of the rack.
2 Cup
The cup is adapted to fit any type of rack.
3 Front Post
Made of 1/4” thick hollow structural steel, it's virtually indestructible.
4 Back Plate
The back plate is made of 1/4" steel.
5 Horizontal Brace
Welded and made of C3 channel for built-in impact resistance.
6 Anchors
All units come with high shearing capacity Hilti anchors.
7 Bullnose
It protects the front anchor against forklift damage.
8 Foot Plates
Can be extended, customized for seismic zones or come without a bullnose.

FAQ

I have damaged uprights. What should I do?
FAQ arrow

As racks get damaged, they may lose some capacity and compromise the rest of the system. We recommended you call Damotech so we can arrange for one of our experts to survey the damage and offer a solution.

Is repairing an upright cheaper than replacing it?
FAQ arrow

Yes. Although the cost of an upright replacement and a repair kit are similar, once the values of time, safety, ease of installation and built-in prevention are taken into account, the value proposition of a DAMO PRO becomes very clear. Plus, the replacement of an upright is ripe for being damaged again as soon as it is installed. By comparison, our permanent repair kits come with a lifetime warranty. Install it and forget it!

Will your install crew be disruptive to my warehouse operations?
FAQ arrow

One of the great advantages to using Damotech is the ease of install. Damotech has developed a patented installation method, using a dedicated lifting device that allows the repairs to take place with minimal to no unloading of your racks. Imagine the convenience of not having to move merchandise from aisle to aisle just to clear some bays, as you would do when doing an upright replacement. Using the DAMO EASY LIFT during installation is a huge time saver, which helps improve productivity by minimizing downtime.

How long will it take to manufacture the repair units?
FAQ arrow

By building a new state-of-the-art facility and optimizing our production, we've significantly improved our lead time. We aim to have your custom unit ready to ship in about four weeks.

After being repaired, will my rack hold the same capacity?
FAQ arrow

Yes, our repair solutions do not alter the load capacity of your racks. They respect the original configuration of the rack and maintain, if not exceed its original load capacity. If you have doubts, talk to one of our engineers or experts.

I have several types of racks in my warehouse. Can you repair them all?
FAQ arrow

Over the last 30 years, Damotech has developed the expertise to repair any type of rack, even racks that are no longer manufactured. We have yet to meet a type of pallet rack that has left us stumped but we are always ready for the challenge!

Why is the pricing not listed on your site?
FAQ arrow

It’s not that we want to skirt around the subject of pricing. We like to know what things cost, too.

Our rack protection and rack repair products are made-to-measure, and we always tailor our inspection and training services to customers’ specific needs. We inspect facilities large and small, and repair damage anywhere in North America. Consequently, our pricing will factor geographic location, volume, freight, and installation costs. In most cases, a rack expert will visit your warehouse to assess the damage and take necessary measurements for a perfect product fit and a detailed quote containing no surprises.

To get more information on pricing; request a free quote or call 1-877-990-3266 and let us demonstrate the value of the products and services we provide.
