DAMO ADVANTAGE Rack Repair Kit (Standard Front)


DAMO ADVANTAGE
A Repair Kit with a punched Front Column

This pallet rack repair kit fixes the most common rack column damage. The front column will be punched to match the style of your OEM frame. The internal reinforcement strengthens the corners of the column while still allowing for low-beam attachment. The standard and non-protruding versions of DAMO ADVANTAGE are also ideal for very narrow aisles (VNA) configurations as they do not protrude within the aisle.

Get a Quote

Warehouse racking column punch hole patterns

Punch Style Compatibility

The punch hole patterns on DAMO ADVANTAGE repair kit are specifically created for convenience and flexibility. They match the standard hole configurations on your OEM pallet racks, allowing existing beams to be reattached seamlessly without requiring additional drilling or new brackets. This compatibility simplifies the repair process, reduces installation time, and ensures a strong, secure connection. Several custom punch types are available; ask a Damotech representative.

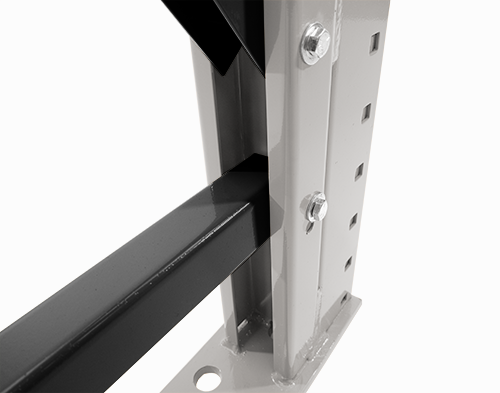

DAMO ADVANTAGE Brace Attachment Close-up

STRONG AND ADAPTABLE REPAIR KIT

DAMO ADVANTAGE is designed to reuse existing OEM struts/braces or accept new repair struts when needed (learn about DAMO BRACE). The front post is reinforced with a backer channel for additional strength. The kit has a 3/8" thick oversized footplate and comes with two 3/4" x 7" anchors, providing high resistance to impact and column twisting. The standard DAMO ADVANTAGE comes without a deflector, allowing for beam attachment at floor level.

Benefits of DAMO ADVANTAGE

Cost Effective

DAMO ADVANTAGE repair kits are a cost-effective solution to single-column damage as they re-use existing rack braces.

Simple Beam Re-Attachment

Our kits will replicate your racks' punch-style patterns, making it easy to re-attach your exiting beams without drilling or new clips.

Ideal for Narrow Aisles (VNA)

This kit is engineered to minimize aisle obstruction, making it ideal for high-density warehouse configurations where space efficiency is essential.

Fits Any Type of Rack

DAMO ADVANTAGE can repair and protect any rack, old, new, and even those no longer manufactured.

Peace of Mind

Our repair kits protect against future impact, follow RMI engineering standards, and maintain load capacities.

Bolt-On Kits

All DAMO ADVANTAGE kits are shipped and ready to be installed by installers, with all the necessary hardware. No welding is required on-site.

CONTACT US

Our rack repair solutions are designed to respect the specifications of your original racking system. They restore the original load capacity while extending their lifespan—safely and permanently.

Our experts will visit your warehouse, take all the measurements, and specify the right product for each reported deficiency.

Our units are made-to-measure for your specific needs. No matter the dimensions, finish, type of footplate, or rack configuration, we'll custom-build kits to your exact requirements.

When faced with damaged racking components, one can choose to repair them with dedicated repair kits or replace them with original OEM parts. Rack repair products offer several advantages that need to be considered:

Permanent

Our robust repair products have a warranty that provides full peace of mind. Replacing with OEM parts means your uprights remain vulnerable to impact and may get damaged repeatedly.

Quick Delivery

The lead time for Damotech products is short. Units are ready to ship in weeks, which is much faster than ordering OEM parts that can take months to arrive.

Less Disruptive

Thanks to our proprietary lifting device, the installation process is quick and easy, and unloading is usually unnecessary. There is no need to dismantle and reattach beams, which means less downtime. It's more cost-effective and has less impact on your day-to-day operations.

All these reasons make our repair products a smarter solution and a better long-term investment.

Visit the Why Damotech page to learn why top warehouse operators trust Damotech as their partner for rack safety.

Because we strive to offer consistent installations regardless of location, all our installers are trained and certified by our most experienced engineers. Our certified installers can install a standard repair kit in under an hour.

At Damotech, we stand behind our products. DAMO ADVANTAGE comes with a 5-year limited warranty. This means that the product you purchase will be free from defects in material and workmanship.

Download the 5-Year Warranty Sheet

1 2 3 4 5 6 7

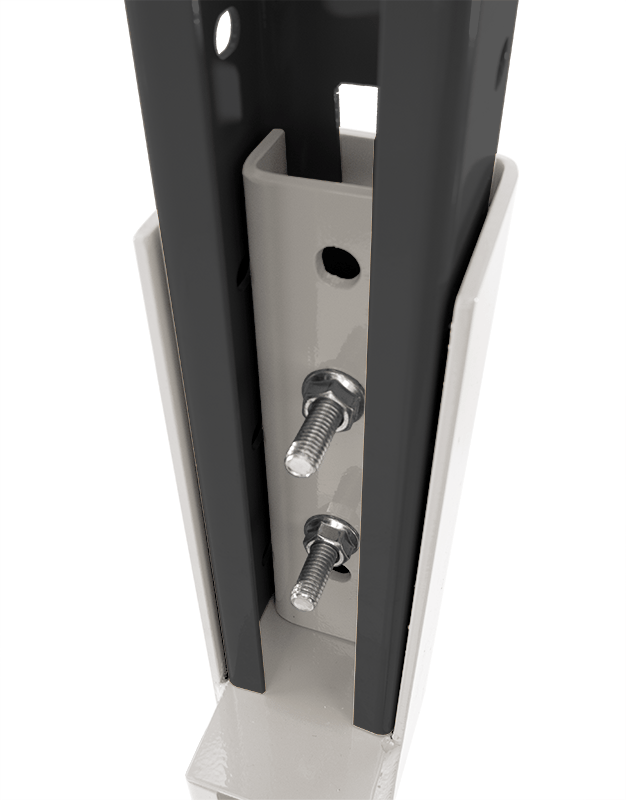

1 Bolted Cup
The cup is adapted to fit any type of rack, the height is customized based on your beam position requirements. No on-site welding is required.
2 Rack Braces
In most situations, horizontal and diagonal braces from your existing rack will be bolted to the repair kit.
3 Powder-Coated Paint
The unit is finished with durable powder-coated paint.
4 Front Repair Post
The front post is reinforced with a backer channel for additional strength.
5 Punch Pattern
OEM punch style is replicated on the kit for easy beam attachment.

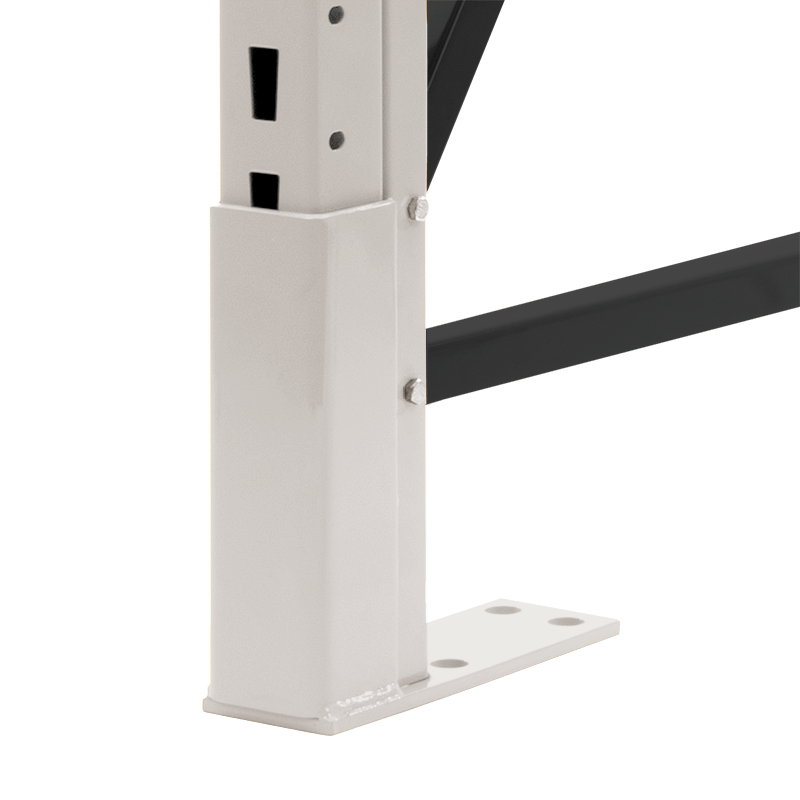

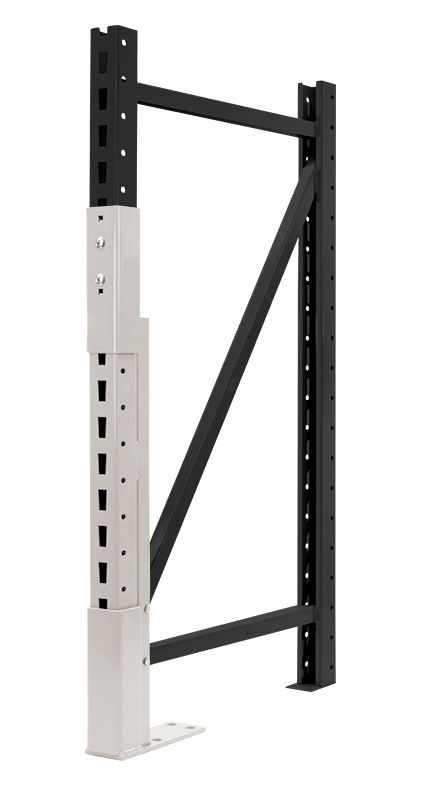

6 Front Deflector
This repair kit (NPD) is fitted with a 12" deflector for increased durability. The standard version has no deflector and has punch holes all the way to the floor for low-beam attachment.
7 Oversized Footplate
The large footplate disperses impact forces to the floor. It is made with 3/8" steel and offers new anchor points to secure the kit when existing anchor holes cannot be re-used.

Product sheet - DAMO ADVANTAGE

FAQ

I have several types of racks in my warehouse. Can you repair them all?
FAQ arrow

Over the last 35 years, Damotech has developed the expertise to repair any type of rack, even racks that are no longer manufactured. We have yet to meet a type of pallet rack that has left us stumped but we are always ready for the challenge!

Our rack repair products can repair racks, including those from the following manufacturers:

  • Arcan Manufacturing
  • BeamLock
  • Centennial
  • Cubic
  • Dexion
  • Federal Steel
  • Frazier Industrial Co.
  • Hartman
  • Hiline
  • Husky Rack & Wire
  • Interlake Mecalux
  • Kingway
  • Mastorack
  • Maxierack
  • Pacific
  • Palmer Shile
  • Paltier
  • Penco
  • Rapid Rack
  • Redirack (Canada)
  • Republic Storage Systems
  • Ridg-U-Rak
  • Speedrack
  • Steel King
  • Sturdibuilt
  • SuperRack
  • Triple A
  • Unarco
  • USP
  • Web Press Steel
I found damage in my warehouse. What's the next step?
FAQ arrow

As racks get damaged, they may lose capacity and compromise the structural integrity of your entire racking system. We recommend you contact Damotech immediately so we can arrange for an expert to survey the damage and offer a solution.

How long does it take for your products to ship?
FAQ arrow

We've significantly improved our lead time by building a new state-of-the-art facility and optimizing our production. We aim to have your custom unit ready to ship out in weeks! Contact Damotech to get an exact lead time for your order.

What kind of paint do you use on your products?
FAQ arrow

Our products are powder-coated. This means a high-quality finish that withstands the roughest and toughest conditions. It provides a durable and attractive finish that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

Will you tell me what repair kit I need for every damaged location?
FAQ arrow

Yes. Our repair specialist will assess the damage in your warehouse and advise you on what type of rack repair kits are needed for every location. Your quote will contain the location of the damage and the proposed product for that location.

Why is pricing not listed on your website?
FAQ arrow

We don’t skirt around the subject of pricing. We like to know what things cost, too.

Our rack protection and repair products are made-to-measure. Consequently, our pricing will factor in size, geographic location, volume, freight, and installation costs. A rack expert will most likely visit your warehouse to assess the damage and take the necessary measurements for a perfect product fit and a detailed quote containing no surprises.

To get more information on pricing, request a free quote or call 1 (877) 990-3266, and let us demonstrate the value of our products and services.

Was DAMO ADVANTAGE previously a Mac Rak product?
FAQ arrow

Yes, DAMO ADVANTAGE was originally a Mac Rak product. In 2023, Damotech acquired Mac Rak, and its brand has since been integrated under the Damotech umbrella.

Several rack repair and protection products, including DAMO ADVANTAGE, DAMO AISLE GUARD, DAMO NOSE GUARD, DAMO FRAME GUARD have been rebranded to reflect the Damotech name while maintaining their proven quality and reliability.
