Add the DAMO SHIELD column guard to your architectural drawings or engineering specs:
DOWNLOAD CAD DRAWING FILES
Building columns are critical to structural integrity. Damage is expensive and disruptive.

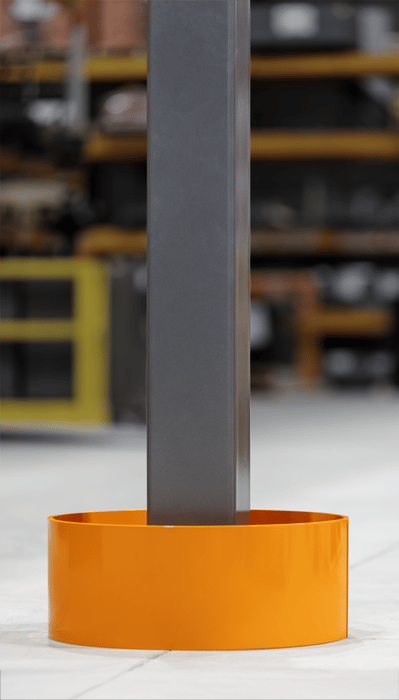

DAMO SHIELD surrounds the column but doesn’t rely on it. Impacts are absorbed and transferred to the floor, not the column. Anchors sit inside the guard’s ring to keep the footprint minimal.

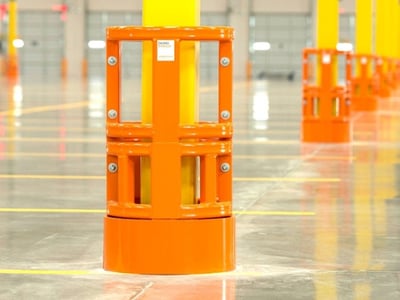

Use DAMO SHIELD in warehouses and DCs, indoor parking garages, and manufacturing facilities. Specify galvanization for freezers, outdoor use, or strict sanitation.

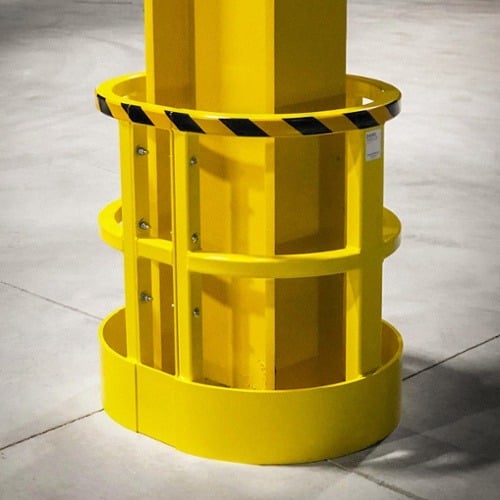

Use a single half‑moon to shield wall‑run utilities. Add steel extensions (6″, 8″, 10″, 12″, or custom) to span wider faces or protect adjacent equipment.

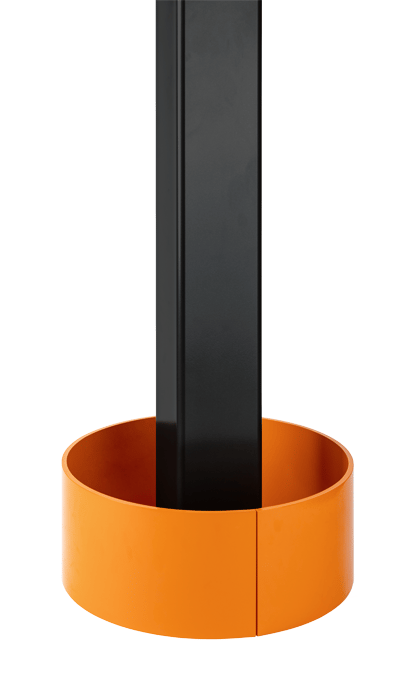

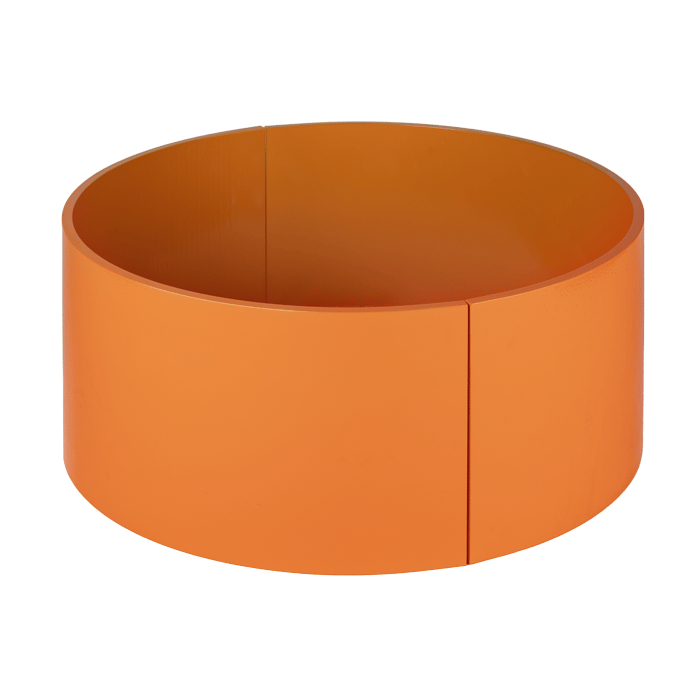

A standard 8″ circular DEFLEX plate protects at floor height and shields anchors. Add the Fork Blocker to stop forks from reaching the column above the plate.
Plastic or polymer wraps rely on the column for structure and can still transmit impact forces to it. DAMO SHIELD is independent and floor‑anchored, making it a better option.
The standard height of our DAMO SHIELD is 36".
Your internal maintenance crew or a chosen external provider, such as your dealer, can easily install Damotech’s rack protection products. Although certification is not required, many companies prefer Damotech’s Orange Pros team for their installations due to the significant advantages:
Yes, the standard color is orange, but we can custom paint your DAMO SHIELD to almost any color for an additional cost. We can also galvanize the guard if installed in a freezer or outdoor environment, or where strict sanitation policies exist. Once galvanised, our column protector remains rust free.
It’s not that we want to skirt around the subject of pricing. We like to know what things cost too.
Our products are almost always made-to-measure and will factor geographic location, volume, freight, and installation costs, to offer you a detailed quote and avoid any surprises.
To get more information on pricing; request a DAMO SHIELD quote or call 1 (877) 990-3266 and let us demonstrate the value of the products and services we provide.
Download our CAD drawings, BIM files, and spec sheets.
DAMO SHIELD is available in two sizes:
Standard: Protects columns of up to 10" x 10" inches (when no extensions are used), and has an exterior footprint of 20 inches. It can protect columns of up to 21" x 10" when a 12" extension is used. This would give it a footprint of 32" by 20".
XL: Protects columns of up to 16" x 16" inches (when no extensions are used), and has an exterior diameter of 30 inches. It can protect columns of up to 27" x 18" when a 12" extension is used. This would give it a footprint of 42" by 30".
Extensions: Standard steel extensions come in 6", 8", 10", and 12" dimensions. It can also be custom-made to almost any size.
Customization: Although these are the most common sizes, the DAMO SHIELD can also be customized to take other shapes. A range of finishes (paint
An optional add‑on that prevents forks from reaching the column above the standard 8″ DEFLEX plate.
Yes. Request galvanization for cold‑storage, outdoor, or wash‑down environments.
10‑Year manufacturer’s warranty for DAMO SHIELD and other protection products.
Units ship with rated bolts and Hilti screw‑type anchors. Typical install takes under 30 minutes.

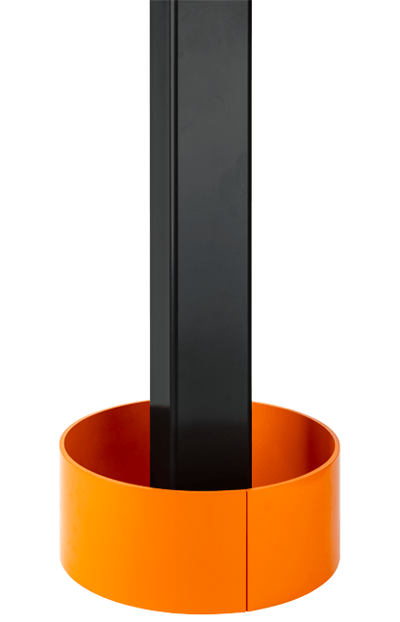

A high‑impact, steel building‑column guard that surrounds (but does not touch) the column. It absorbs impact and transfers the energy to the floor.
Want to learn more about our DAMO SHIELD? Fill out this form and we'll send you a quote or schedule an on-site assessment, and answer any question you might have!
