Pallet rack repair replaces only the damaged section of a rack upright, rather than the entire frame, with a custom engineered rack repair kit is bolted into place. No on-site welding. The kit restores the rack's original load capacity and protects from future impacts.
Most installs take under an hour per upright. Most no unloading, depending on site conditions.
Replacing an upright usually means unloading pallets, dismantling the rack, ordering replacement components, re-installing, and reloading pallets onto it. The result: high costs and lengthy operational disruption. But fortunately, there is a better option.
Rack Repair skips most of that. We replace only the damaged section and keep the sound part of the frame. The rack goes back to its original load capacity. Damotech repairs racks from all manufacturers, anywhere in the U.S. and Canada.

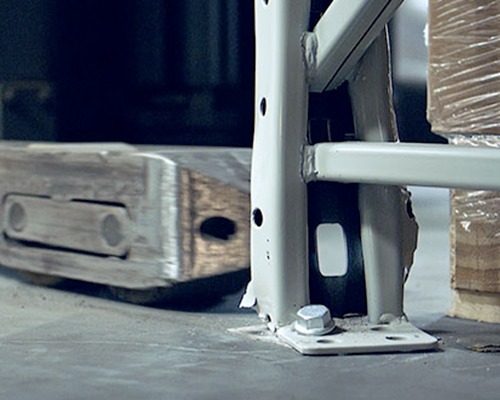

Most rack damage occurs near floor level, where lift trucks often strike the uprights. In many cases, the section above the damage remains structurally sound. A rack repair solution replaces only the damaged lower portion, reducing metal waste, offering a faster, more cost-effective alternative to replacing the entire frame.
If you discover rack damage, secure the affected area and follow your facility’s emergency procedure. Have the rack evaluated by a qualified rack expert.
“Based on data from thousands of Damotech warehouse inspections, more than 85% of rack damage occurs within the bottom 24 inches of uprights.” Charles Carbonneau, Damotech Chief EngineerSource: Damotech analysis of thousands of warehouse rack inspection findings.
Every impact is different. Repair solution should be confirmed through an expert assessment or rack inspection. Damtech repares many types of pallet rack damage, including:

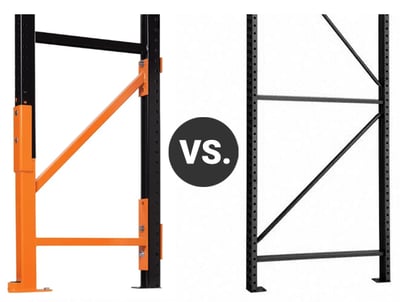

There are four ways to handle rack damage: ignore it, weld it on-site, replace the frame, or use an engineered repair kit like Damotech's DAMO PRO.
Ignoring damage is not safe and poses a serious safety risk. On-site welding is also problematic because it requires a hot-work permit and makes it difficult to validate load capacity.

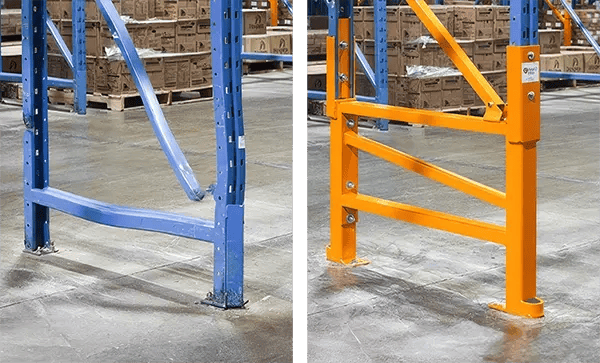

An engineered bolt-on repair replaces the damaged section while keeping the top portion of the upright. It usually requires no unloading, reduces metal waste, and protects the repaired area against future impacts. It is usually faster and more cost-effective than replacing the entire frame.
Replacement may be necessary when the damaged section cannot be repaired, other parts of the frame are no longer usable, or the damage extends high on the upright. It requires unloading and dismantling the rack. The entire upright must be discarded. The new upright also remains vulnerable to future impacts.
Repair is usually a smarter choice.
Access our Detailed Repair vs. Replacement Breakdown →
Damotech makes pallet rack repair simple. One team handles the whole job. We assess the damage, engineer and build each kit to fit your rack, and install it. You deal with one supplier, not four.

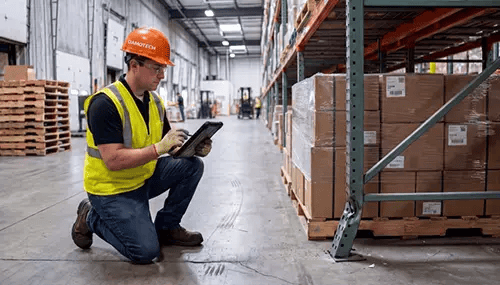

It starts with a call, an email, or a form. A Damotech rack expert visits for a free on-site rack damage assessment. We check the damage, your rack setup, and the area around it. We then take the measurements needed to pick the right repair.
Your specialist picks the right kit for each damaged spot. The proposal lists the products, price, shipping, lead time, and install date. For large projects, we can phase repairs by urgency, operations, and budget.
Each kit is built to match the exact rack shape at its damaged spot. We make it in our own plants and finish it with powder coat or galvanizing. Every kit ships with technical drawings and documentation. Kits are generally ready to ship within a few weeks.

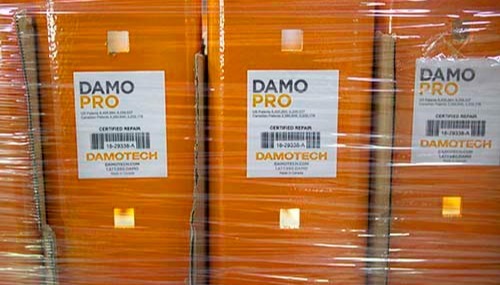

Once you confirm the install date, we ship the kits to your warehouse. They arrive before the crew does. Each shipment includes all the install hardware: backplates, bolts, anchors, and DAMO BRACE parts when specified

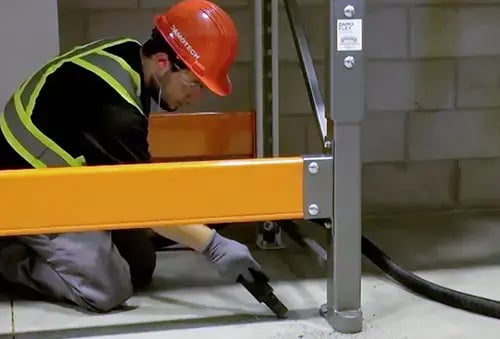

The Damotech-certified crews first secures the work area. Our DAMO EASY LIFT jack holds up the upper rack while the crew removes the damaged section. They set the repair kit in place and anchor it to the floor. Then they remove the jack and bolt the upright to the kit. Most upright repairs take under an hour, with little to no unloading. The rack goes back into service quickly.
Damotech provides engineered pallet rack repair services for warehouses and distribution centers across the U.S. and Canada. Our teams handle the entire repair process.
Whether you have a single damage or recurring damage across multiple facilities, Damotech can help you. We create a repair plan tailored to your warehouse’s condition, operational priorities, and budget.
Damotech pallet rack repair services are available directly, or through our North American dealer network.
We build rack repair units that work on any pallet rack. They can be used in dry or cold-storage (cool and freezer) environments.
We install them in warehouses, distribution centers, 3PL operations, retail and food distribution, manufacturing plants, and other material-handling environments. If your rack is no longer made, we can still build a kit that matches its exact size and specs.
Damage conditions
Rack systems and frame configurations
Damotech begins with an on-site evaluation and precise measurements of the damaged rack. A custom-engineered, bolt-on solution is then manufactured to match the existing system. During installation, a certified crew supports the rack with the DAMO EASY LIFT, removes the damaged lower section, and anchors the new structural components in place. No on-site welding is required, and the repair is designed to restore the upright’s original rated load capacity.

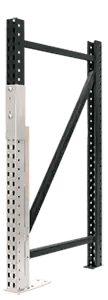

Engineered repair solutions reinforce the lower portion of the upright, where lift-truck impacts occur most often. Products such as DAMO PRO use structural steel to strengthen this vulnerable area and improve resistance to future impacts. DAMO PRO is also backed by a lifetime warranty, subject to the applicable terms and conditions.
The overall timeline depends on the damage assessment, rack configuration, order volume, manufacturing requirements, delivery location, and installation schedule. Custom repair components are generally manufactured and ready to ship within a few weeks. Once on-site, most standard upright repairs are completed in under an hour.
Yes, when the damage is properly evaluated and the repair is engineered and installed by qualified professionals. Damotech designs each solution for the existing rack configuration and provides the necessary technical drawings and documentation. Before returning the rack to service, the installation crew verifies its measurements, alignment, anchoring, and completed work.
Properly engineered pallet rack repair can comply with applicable industry standards and engineering requirements. In the United States, ANSI MH16.1 addresses the design, testing, and use of industrial steel storage racks. In Canada, CSA A344 provides guidance for safely inspecting and maintaining steel storage racks. Damotech designs each repair for the existing system and provides supporting engineering documentation.
In most cases, yes. Damotech can engineer repairs for racks from virtually any manufacturer, including Interlake Mecalux, Steel King, UNARCO, Republic, Ridg-U-Rak, Frazier, Husky Rack & Wire, Redirack, Penco, and Speedrack. Because every solution is custom-designed around the existing upright, it is not limited to a specific manufacturer’s components.
Damotech’s complete service includes damage assessment, detailed measurements, an engineered proposal, custom manufacturing, shipping, technical documentation, and professional installation by certified crews. All required installation hardware is supplied with the repair components. Larger projects can also be prioritized and completed in phases based on urgency, operational needs, and budget.
Usually not. The proprietary DAMO EASY LIFT supports the rack during installation, allowing most repairs to be completed with little to no unloading when site conditions permit. If partial unloading is required for safety, your rack specialist will identify it during the assessment.
Damotech provides pallet rack repair services throughout the United States and Canada through its network of certified installation crews. Contact us with your warehouse location, and we will connect you with the team serving your area.
Yes. Both terms describe the process of restoring damaged warehouse racking to its original rated load capacity. “Pallet rack repair” identifies the type of storage system being repaired, while “warehouse rack repair” is a broader term based on where the work takes place.
